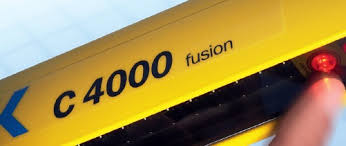

The C4000 Fusion safety light curtain bundles functions and expands the field of applications for safety light curtains. It is qualified for compact muting alternative without additional sensors as well as for highly available hazardous point and area protection. In harsh ambient conditions, the Fusion provides maximum uptime while virtually eliminating false trips. Reliable: flying wood chips or small debris are filtered, preventing annoying false trips Simple: for the access protection with automated material transport C4000 Fusion differentiates between man and material Available: skids are being detected, sporadic objects like dangling shrink-wrap or pallet wood splinters are automatically suppressed Cost-effective: only one sender / receiver pair, ensures cost savings during mounting, wiring and service Easily integrated: no secondary muting sensors necessary, only the OSSDs are implemented Safe: also provides protection in areas in which there is no object, unlike conventional muting solutions

Flexible: individually adjustable to local conditions: sequence monitoring of defined objects of almost any size Position monitoring: using two single beams out of the curtain The integrated EFI interface allows the use of addtional sensor functions. the production line and available now from LPC is the NEW Sick C4000 Safety Light Curtain with increased performance and many new features. Rated Category 4, the C4000 provides a cost effective and individual solution to safety applications regardless of the hazardous point of operation or danger area involved. With a small profile cross section, protective field heights of between 300 - 1800mm and capable of operating in either vertical or horizontal mounting the C4000 is a truly versatile safety curtain product specification and technical details in Adobe Acrobat formatPlease Note: You are viewing the unstyled version of ISE Controls. Either your browser does not support CSS (Cascading Style Sheets) or it is disabled.

As a result, much of this website will not look the way it was intended, although all of its contents will be accessible to you. curtains buxtedFor more information, visit our Browser Support page.dunelm mill purple blackout curtains Skip to Primary Site Navigation, Secondary Site Navigation, Contentcurtain fabric outlet finchley Home > Products > Safety > Safety Light Curtainscurtains roberta wooster Safety Light Curtains are a form or light barriers tied into the control circuit and able to stop the machine or process safely if the barrier is entered (broken). shady lane curtains ronks pa

Light curtains are required to allow access to a dangerous area that is surrounded by hard barriers.dunelm deep blue sea curtains SICK C4000 Safety Light Curtainscurtain alterations lowestoft C4000 protective systems are used vertically or horizontally wherever hazardous points-of-operation and dangerous areas need safeguarding. It allows rapid and easy to commission, easy to service and user-friendly. SICK C4000 Literature (2.6M, PDF) Sunx SF4B Safety Light Curtain With the SF4B series of safety light curtains, SUNX has built off of the successful features of previous models to create an easily integrated, full featured light curtain, all within one of the smallest packages on the market. Sunx SF4B Literature (3.4M, PDF) Dynics / Ann Arbor Technologies Color / Contrast Sensing

Actemium Logistics provides automated solutions such as picking, conveying and sorting, WMS integration for companies working in logistics. As a means of securing access to a palletizing system for E. Leclerc, the company was on the hunt for a solution that would be able to distinguish between people and goods. The quest was made even more challenging by the range of complex factors that had to be considered in the decision. The solutions: C4000 Fusion safety light curtain from SICK. A palletizing system is installed by Actemium Logistics in E.Leclerc logistics center. It is at this location that shipments containing all kinds of different goods are delivered to a warehouse area on a daily basis. E.Leclerc packs them on pallets, and the company then delivers them to regional supermarkets. Access to the palletizing system must be secured in order to prevent people from entering it; at the same time, however, goods must be allowed to pass through it without obstruction. The company’s decision on which solution to choose was complicated by some key factors.

Firstly, the objects that are stored on the pallets come in a whole range of sizes from 150 mm to 1,200 mm. Not only that, but the nature of the goods is highly varied too – anything from bottles to vegetables to sugar. Additionally, there are often spaces (either large or small in size) between the objects on the pallet. This leaves very little room for muting sensors designed to trigger safety sensor detection. In the end, Actemium opted for the C4000 Fusion safety light curtain, a horizontal light curtain that recognizes object patterns automatically and is exceptionally easy to install and maintain. It does not require any upstream or downstream muting sensors either, which means that only one pair of sensors needs to be installed: the C4000 itself. This saves a great deal of time during installation, as attaching muting sensors can be an exceptionally complex process when there is little space available for them. Configuration is also a breeze: The CDS software teaches in the various sizes and shapes of the objects in full – something which also makes replacement easier in the event that equipment is damaged.
